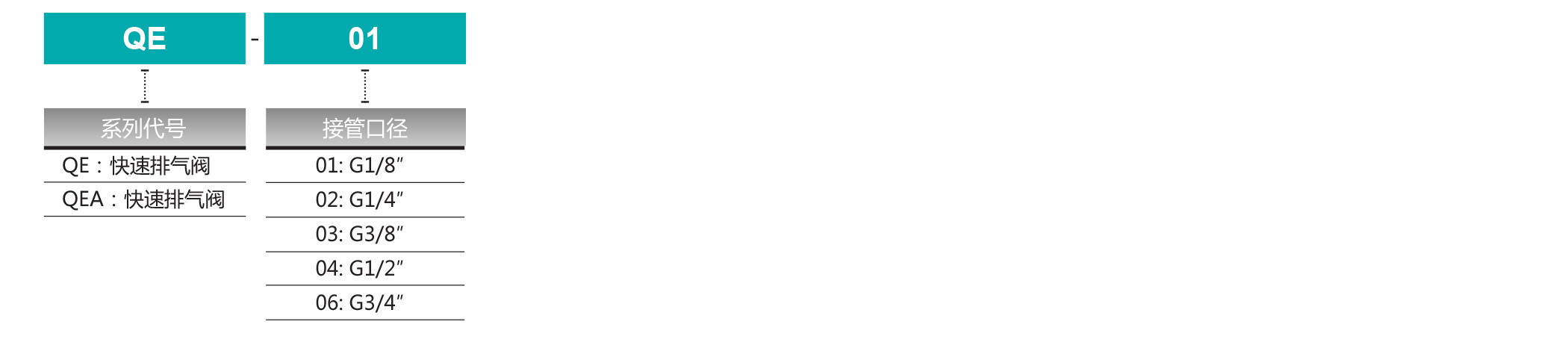

訂購碼

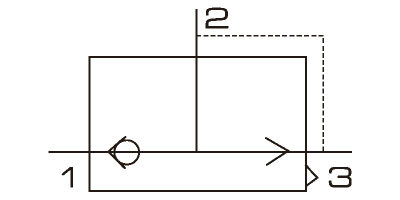

圖形符號
規格參數
|
型號 |
QE-01 |
QE-02 |
QE-03 |
QE-04 |
QE-06 |
|
接管口徑 |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G3/4" |
|
有效截面積 |
16 mm2 |
27.5 mm2 |
28 mm2 |
71 mm2 |
72.5 mm2 |
|
工作介質 |
空氣 |
||||
|
使用壓力范圍 |
0～1.0MPa |
||||
|
使用溫度范圍 |
-20～70℃ |
||||

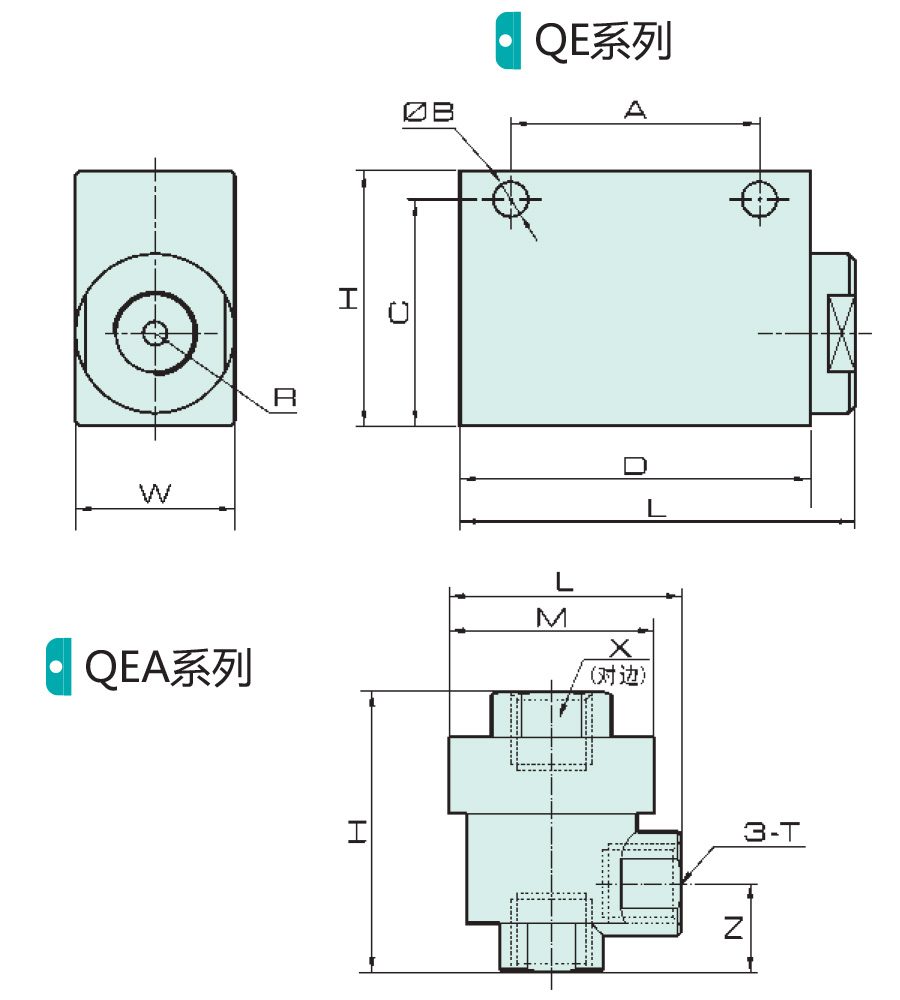

外形尺寸
尺寸表
|
型號/符號 |
R |
口徑 |
L |
W |
H |
A |
B |
C |
D |
|

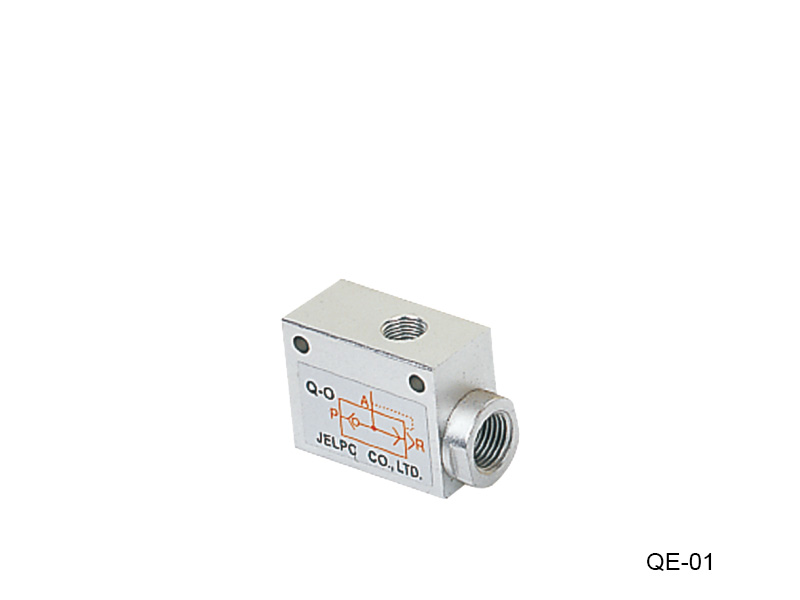

QE-01 |
G1/8 |
G1/4 |
46 |
20 |
32 |
30 |
4.3 |
27 |
40 |
|
QE-02 |
G1/4 |
G3/8 |
61 |
25 |
40 |
39 |
5.5 |
33 |
55 |
|

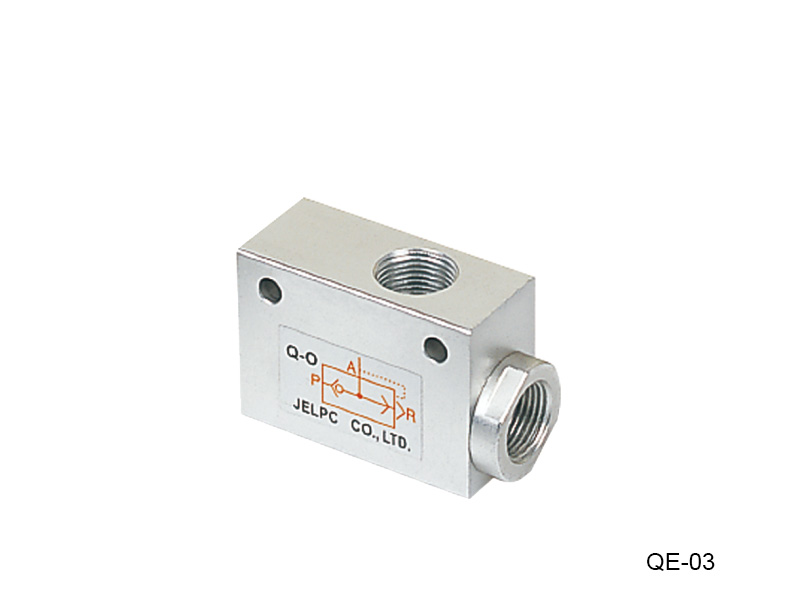

QE-03 |
G3/8 |
G3/8 |
61 |
25 |
40 |
39 |
5.5 |
33 |
55 |
|
QE-04 |
G1/2 |
G3/8 |
52 5 |
28 |
36 |
- |
- |
- |
48 |
|
QE-06 |
G3/4 |
G3/4 |
98 |
38 |
64 |
60 |
8.5 |
51 |
90 |
|
型號/符號 |
T |
H |
L |
M |
N |
X |
|

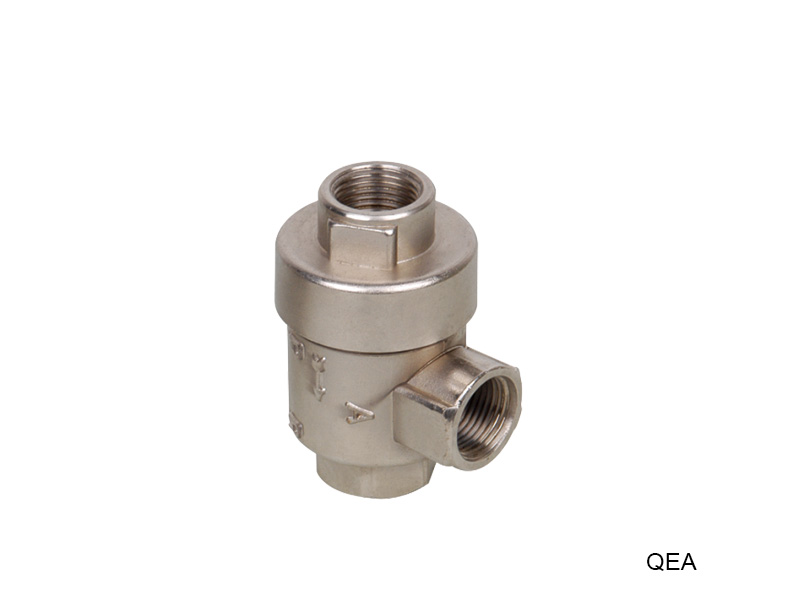

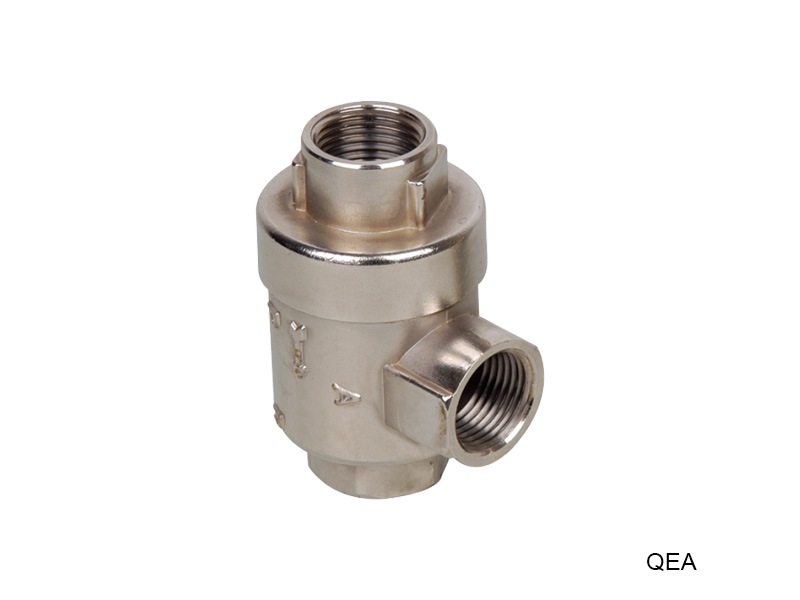

QEA-01 |
G1/8 |
40 |
32 |
28 |
12 |
14 |
|
QEA-02 |
G1/4 |
45 |
38 |
33.5 |
14 |
17 |
|
QEA-03 |
G3/8 |
55.5 |
47 |
39 |
15.5 |
22 |
|
QEA-04 |
G1/2 |
62 |
55 |
43 |
22 |
24 |
|
QEA-06 |
G3/4 |
91 |
66 |
53 |
35 |
34 |
